Compressed Air Tanks
Compressed air tanks are pressure vessels subject to the accepted and registered by the Office of Technical Supervision.
These devices are designed to work in the installation of compressed air at a pressure of 1.0 MPa and a temperature of 100 oC.
Outer surfaces of the tanks have anti-corrosion protection.
Discretionary ordering we can make the tank about other setting of valves and working high pressure.
FLANGE CONNECTIONS "dn" ACC. TO PN-ISO 7005-1, p = 1.0 MPa
These devices are designed to work in the installation of compressed air at a pressure of 1.0 MPa and a temperature of 100 oC.
Outer surfaces of the tanks have anti-corrosion protection.
Discretionary ordering we can make the tank about other setting of valves and working high pressure.
FLANGE CONNECTIONS "dn" ACC. TO PN-ISO 7005-1, p = 1.0 MPa

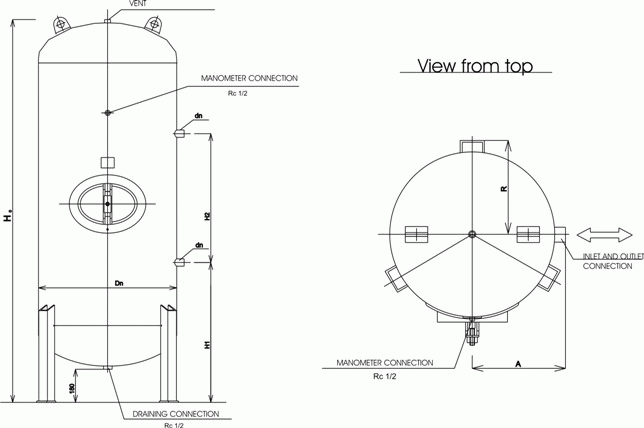

| VERSION | Capacity | Dn | Hc | H1 | H2 | A | R | dn | Weight |
| m3 | mm | kg | |||||||
| ZSP 0,5/1,0 | 0,5 | 600 | 2080 | 760 | 700 | 376 | 380 | 40 | 295 |
| ZSP 1,0/1,0 | 1,0 | 800 | 2366 | 700 | 800 | 443 | 464 | 40 | 422 |
| ZSP 1,5/1,0 | 1,5 | 1000 | 1916 | 700 | 700 | 543 | 566 | 40 | 425 |
| ZSP 2,5/1,0 | 2,5 | 1200 | 2630 | 800 | 800 | 690 | 685 | 50 | 850 |
| ZSP 4,0/1,0 | 4,0 | 1400 | 2993 | 800 | 800 | 792 | 788 | 50 | 1400 |
| ZSP 6,0/1,0 | 6,0 | 1800 | 2984 | 850 | 800 | 992 | 1000 | 65 | 1580 |
